  • ShaftSafe® OEM Module
ShaftSafe® OEM Module

Receive a Free Quote
Features:

  • Pair up to 8 sensors per controller
  • Sensors go into sleep mode conserving battery life after 15 minutes of no pressure (less than 5 psi) state and awaken when pressure climbs above 10 psi
  • Sensors pair by simply turning on the Modbus coil
  • Wireless Bluetooth BLE sensors with replaceable batteries

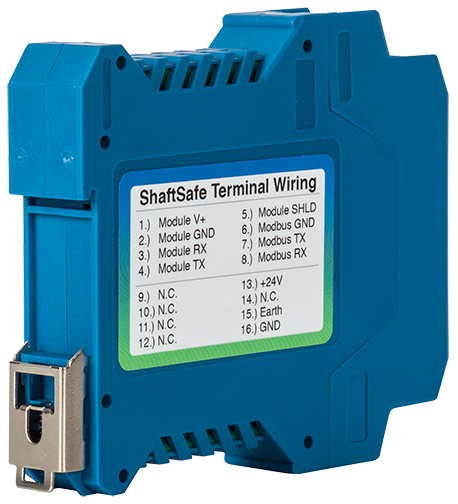

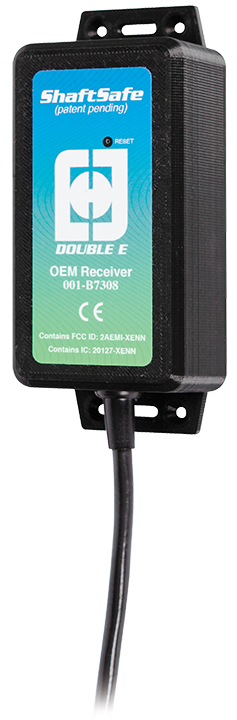

  • DIN-rail mount controller inside enclosure and wall-mount receiver module outside enclosure
Technical Specifications:

  • Pressure sensing range 0 psi to 87 psi
  • Wireless range of 100 feet
  • Sensor update rate 1x per second under 50 psi and 1x per 15 seconds above 50 psi
  • Modbus RTU RS232 protocol
  • Bluetooth Low Energy (BLE) standard
  • 24Vdc supply power
  • Receiver module powered through controller
  • CE and FCC certified
