“Lynx” Digital Slitter Positioning System

Increased accuracy and decreased downtime in shear, crush, or razor slitting applications

Receive a Free Quote
Intuitive digital positioning system facilitates the placement of slitter groups.

Increased accuracy and decreased downtime in shear, crush, or razor slitting applications

  • Instead of using a tape measure to place slitters manually, the operator simply slides the knife holders along the rail, referring to the digital display for accurate placement.
  • Simple (single button) engagement of bladder system locks all holders.
  • In shear applications, the knife holder’s half-stroke feature brings the blade to a neutral position, allowing bottom anvils to be placed relative to the top holders. Once set, operators lock anvils in place with set screw or air delivery to knife shaft (optional). Turning the holder’s knob to the running position automatically applies the proper amount of blade side force for production slitting
Important benefits of the Double E digital slitter system

  • Better value than expensive and problematic fully automatic systems.
  • Works in imperial or metric units with accuracy to within +/-0.030” (0.8mm).
  • Measurement system is not susceptible to dust and does not need to be calibrated after power loss.
  • Low upgrade cost when compared to overall cost of slitting system.
  • Small foot print allows for easy installation.
Double E slitter system - components and options

Double E digital slitter positioning

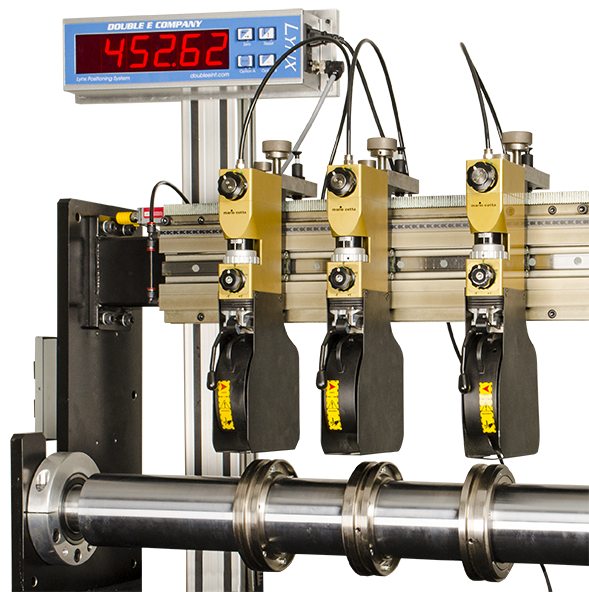

  • “Critical components of the Double E slitter positioning system are the display, the sensor bar, and individual push buttons. The buttons allow positioning of holders relative to a set zero point and/or to each other (if two are engaged at the same time).
Double E digital slitter positioning system
  • Linking pins are available to connect top and bottom groups together. This capability yields similar functionality to a fully automatic positioning system at a fraction of the cost.
