  • Live Shaft and Dead Shaft Load Cells from Double E
Load Cells

Receive a Free Quote
Load Cells

Double E load cells are designed using a full Wheatstone bridge strain gage mounted to a beam supporting the load cell bearing cup. Force from web tension is transmitted through an idler roller mounted to the load cells. A low voltage (mV level) signal is created proportional to the force which then needs to be amplified and used in a closed loop tension controller or tension readout device.

Load Cells

  • Dead and live shaft flange mounting styles
  • Full Wheatstone bridge strain gages improve accuracy by allowing controller to average the input from both load cells
  • Integrated mechanical stop protects strain gage; 300% maximum overload
  • Sheilded 10 meter cables with industry-standard M12 connectors

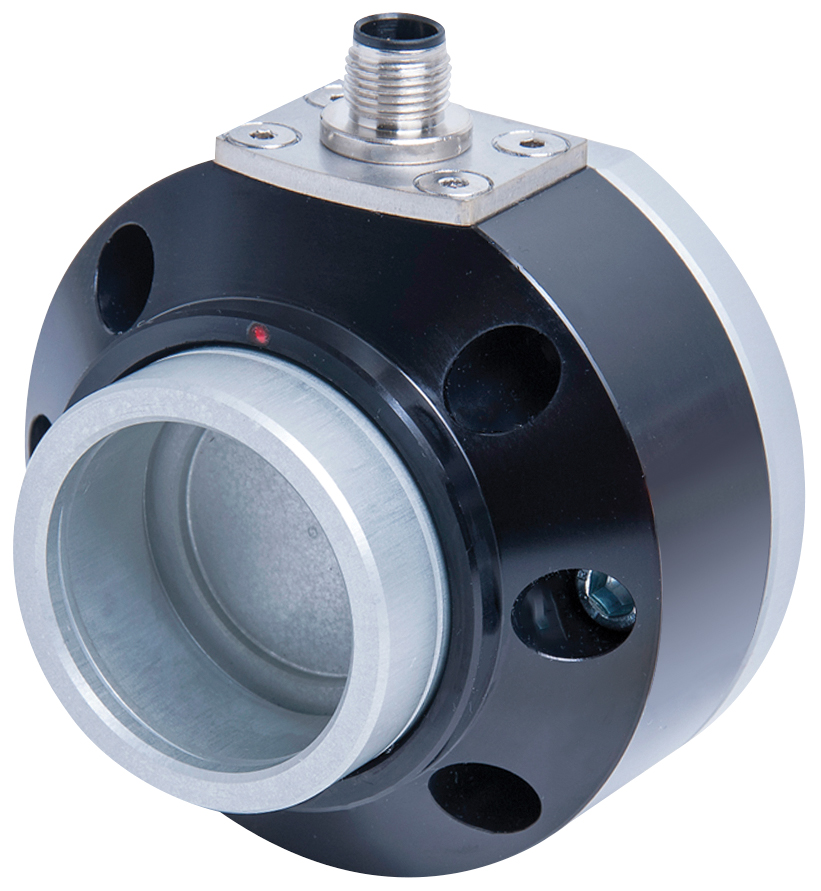

Double E LS Load Cell

LS Model Load Cell



Double E DS Load CellDS Model Load Cell

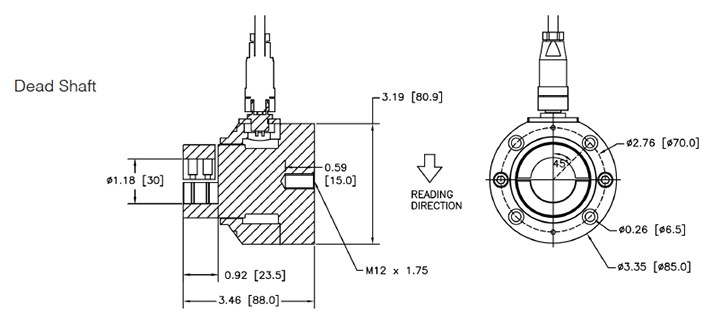

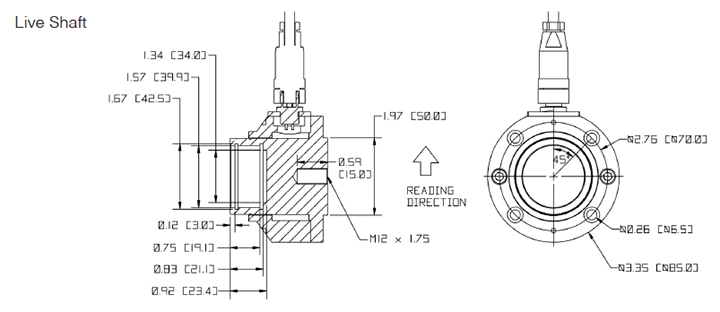

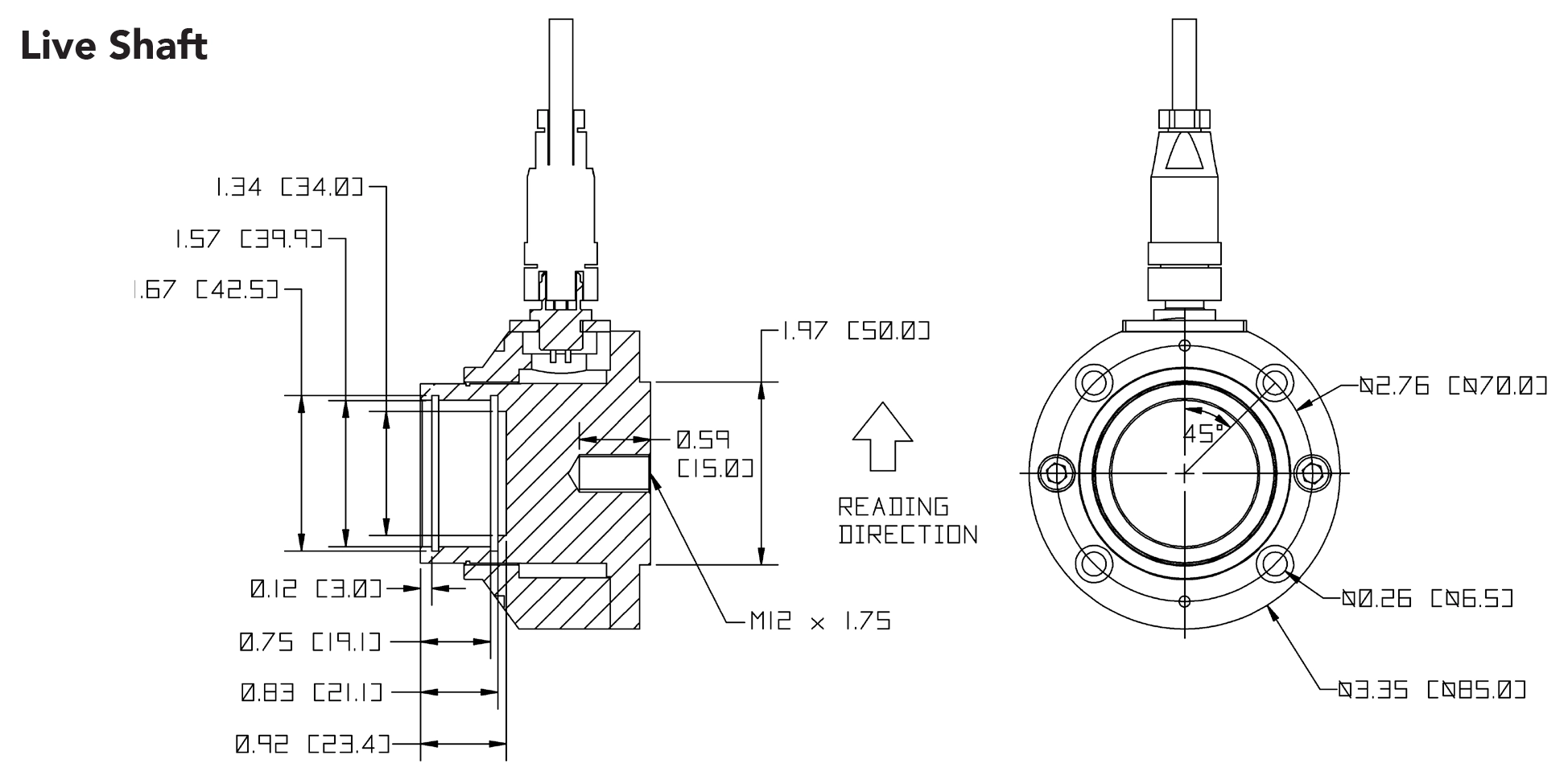

Double E Load Cell technical drawing

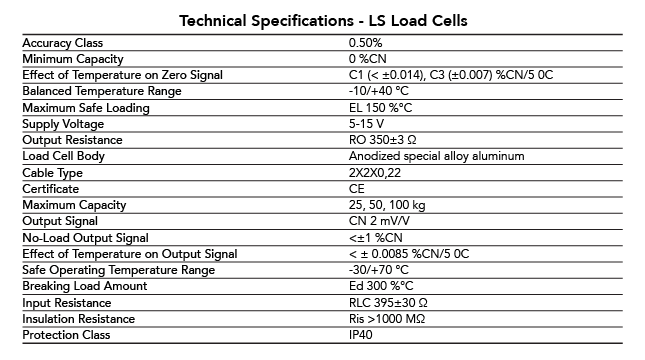

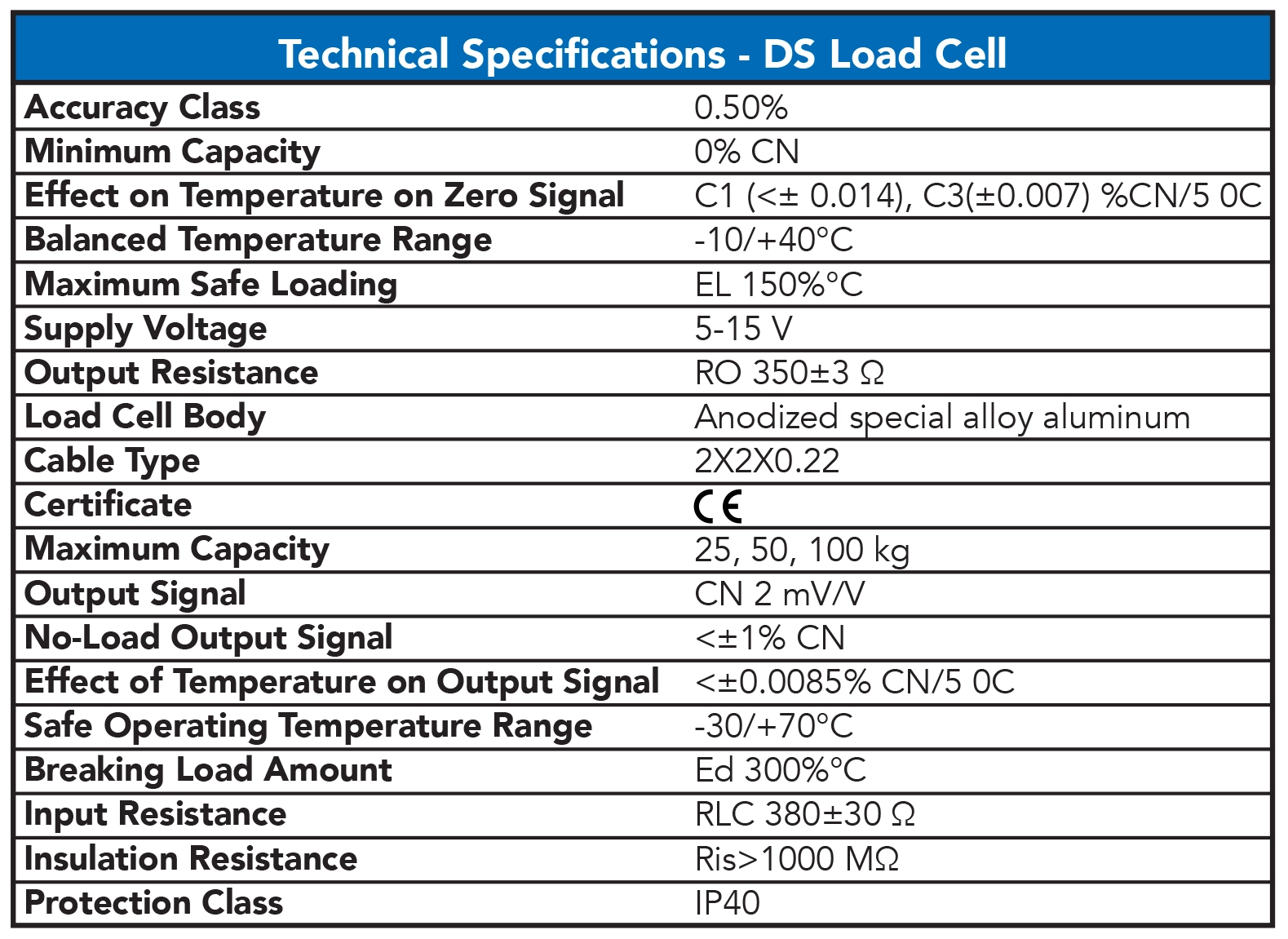

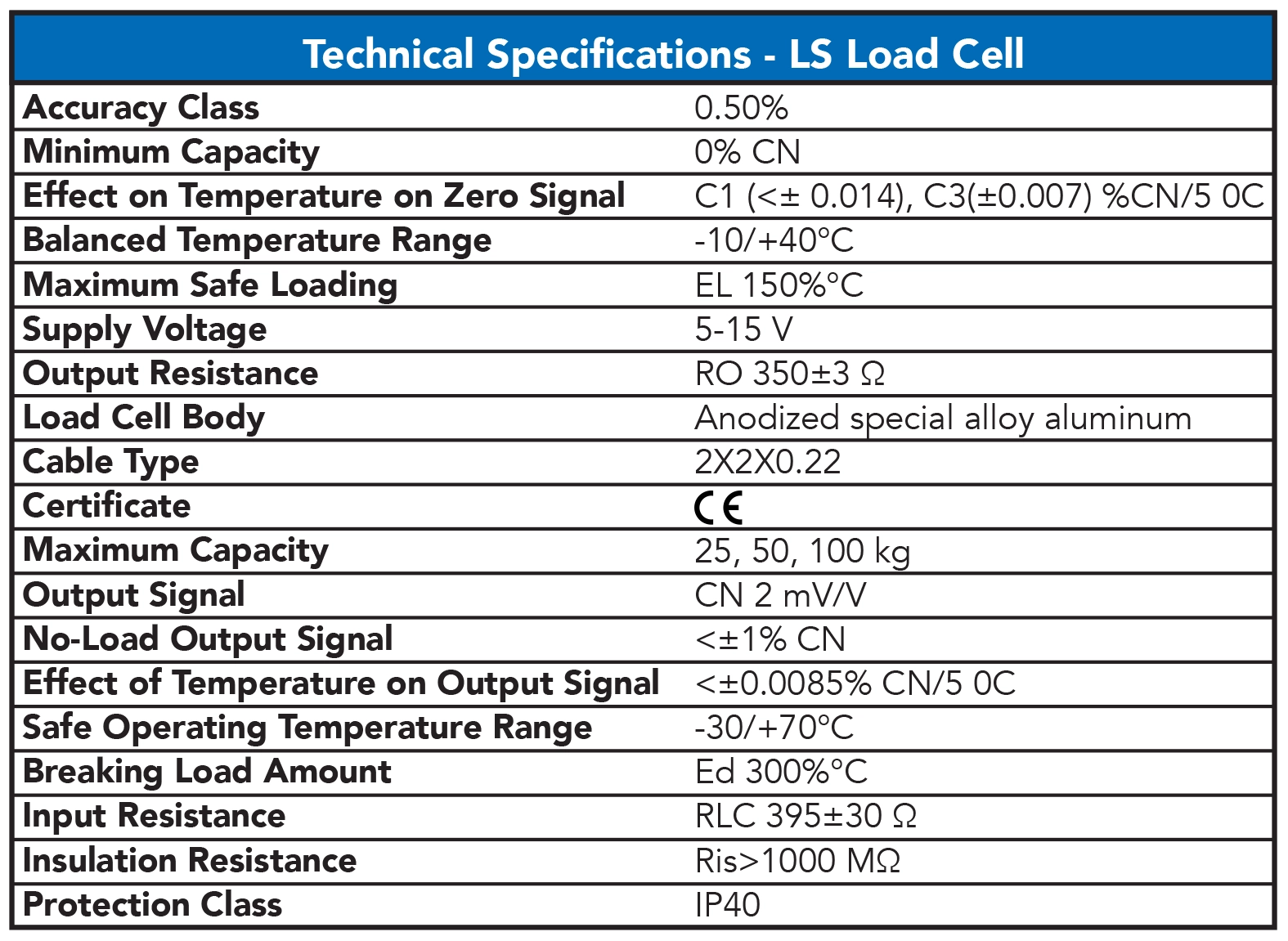

Double E Load Cell info table
