Aluminum Idler Rollers
Aluminum Idler Rollers
Aluminum Idler Rollers
Made from thick-wall-T6-aluminum tube, Double E Group Standard Aluminum Idlers are one of the most popular rolls we make.
All aluminum idlers are dynamically balanced to ISO grade G6.3. Each roll is machined to precision tolerances and has a 32 RMS surface finish across the face. If a hard surface is required to prevent wear, hard anodizing is available upon request.
Advantages
Specifications - Dead Shaft

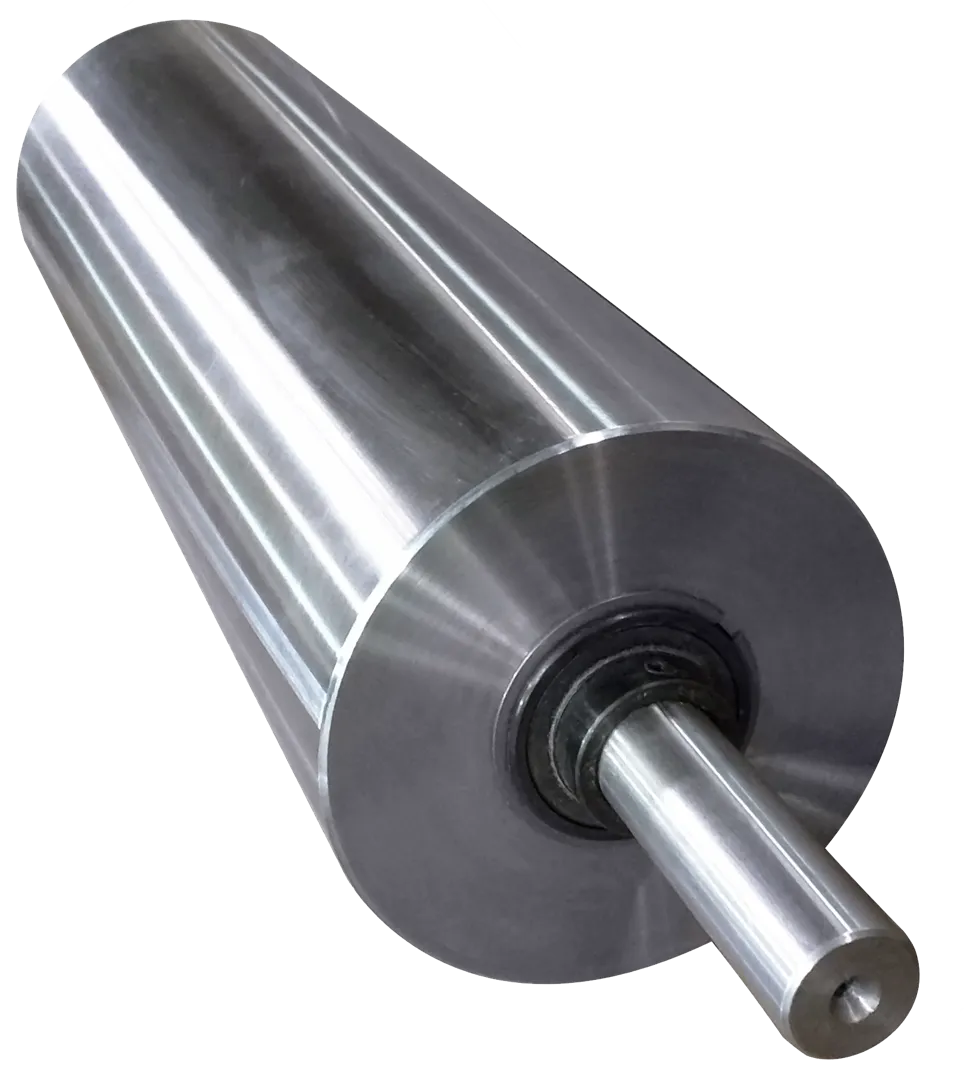

"Dead shaft" idler rollers have a bearing in the idler roll body and therefore the dead shaft (axle) remains stationary. The shaft is fixed to the machine frame in various manners.
Aluminum Dead Shaft Illustrations & Specifications
| ROLLER | SPECIFICATIONS | DRAWING |
|---|---|---|

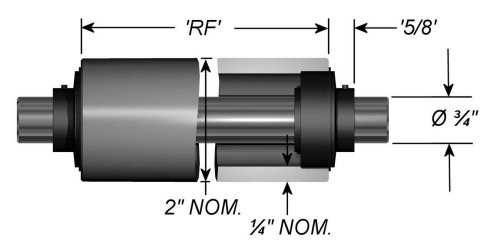

2.0" Nominal Outside Diameter (P/N: SA-2.0-0.75-RF-OS) |
6061-T6 aluminum tubing
O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 28": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Special low drag ER style bearings for 3/4" diameter thru shaft |  |

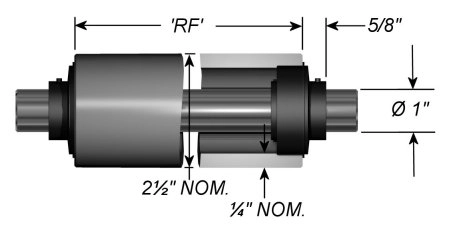

2.5" Nominal Outside Diameter (P/N: SA-2.5-1.0-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 36": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Special low drag ER style bearings for 1.0" diameter thru shaft |  |
3.0" Nominal Outside Diameter (P/N: SA-3.0-1.0-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 44": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.0" diameter thru shaft |  |

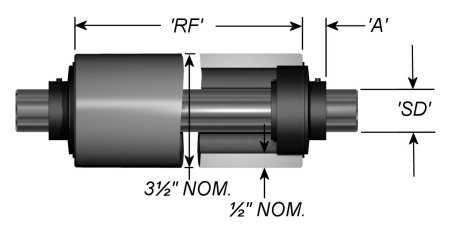

3.5" Nominal Outside Diameter (P/N: SA-3.5-SD-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 48": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.25" or 1.5" diameter thru shaft |  |

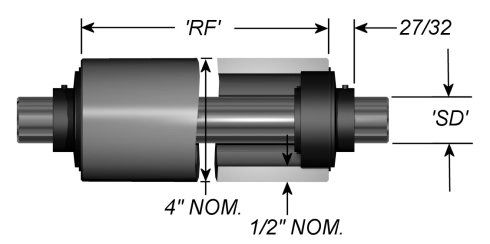

4.0" Nominal Outside Diameter (P/N: SA-4.0-1.5-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 48": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.5" diameter thru shaft |  |
4.5" Nominal Outside Diameter (P/N: SA-4.5-SD-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 48": 0.003" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.25" or 1.5" diameter thru shaft |  |

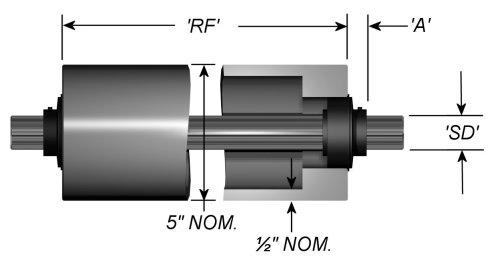

5.0" Nominal Outside Diameter (P/N: SA-5.0-SD-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Special low drag ER style bearings for 1.25" or 1.5" diameter thru shaft |  |

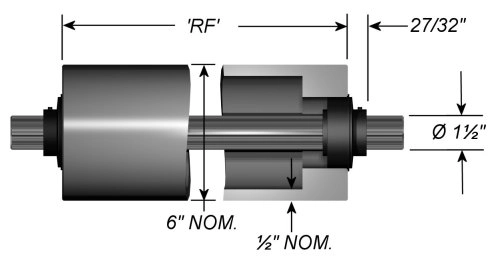

6.0" Nominal Outside Diameter (P/N: SA-6.0-1.5-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Special low drag ER style bearings for 1.5" diameter thru shaft |  |
8.0" Nominal Outside Diameter (P/N: SA-8.0-2.0-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Special low drag ER style bearings for 2.0" diameter thru shaft |  |
Specifications - Live Shaft

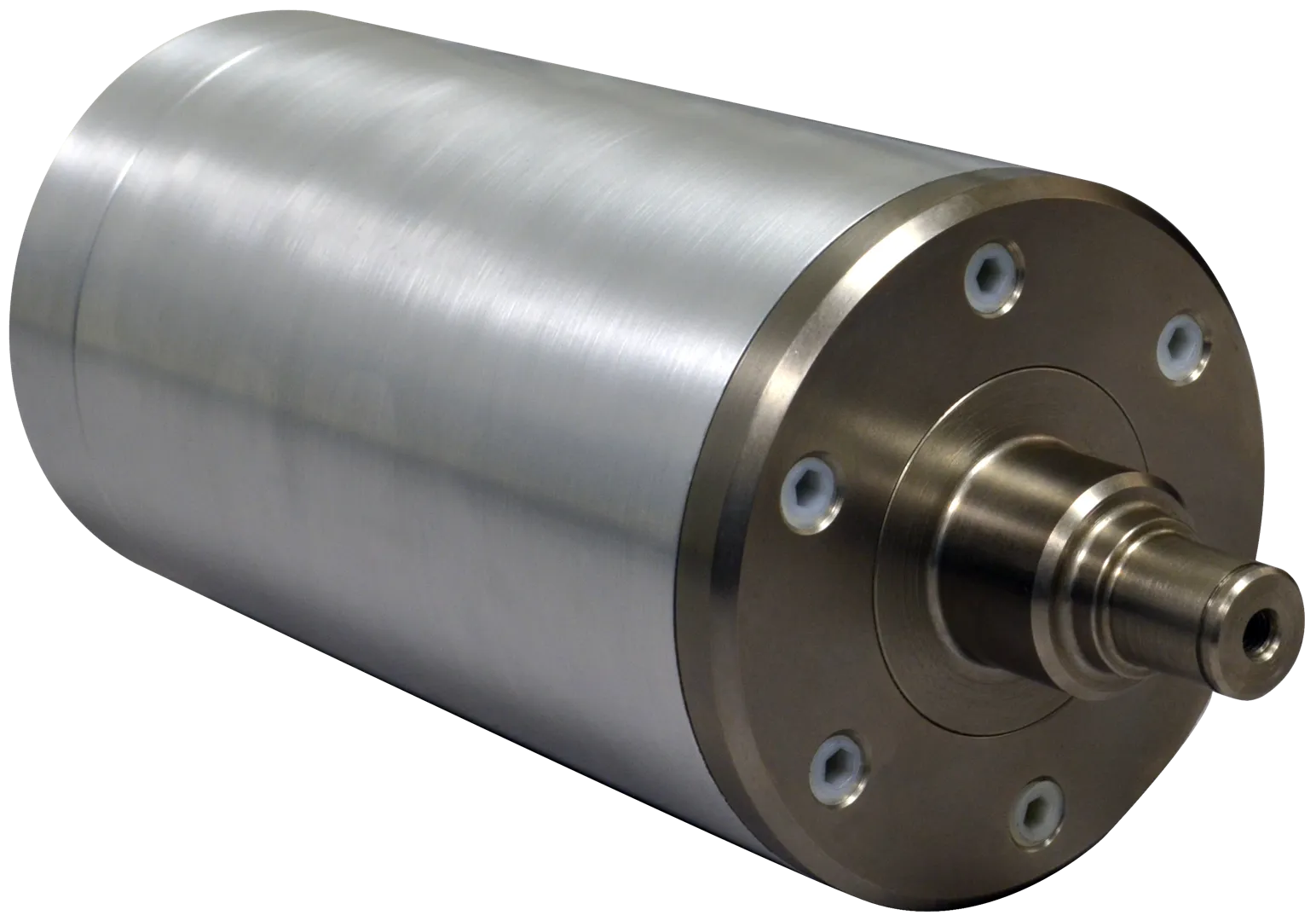

Live shaft rollers have a shaft (axle) that is fixed to the idler roll and therefore rotates with the roller body. The roller bearing is mounted to the machine frame, generally a pillow block or flange mounted bearing.
Aluminum Live Shaft Illustrations & Specifications
| ROLLER | SPECIFICATIONS | DRAWING |
|---|---|---|
3.0" Nominal Outside Diameter (P/N: SAL-3.0-RF-OAL-OS) |
1/2" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 48": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Journal material: 1018 steel Journal sizes: up to 1" diameter x 6" long |  |

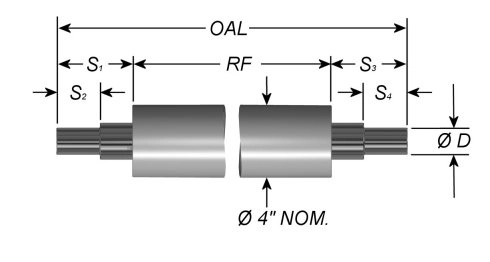

4.0" Nominal Outside Diameter (P/N: SAL-4.0-RF-OAL-OS) |
1/2" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 48": 0.002" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-3/8” diameter x 6” long |  |
5.0" Nominal Outside Diameter (P/N: SAL-5.0-RF-OAL-OS) |
1/2" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 60": 0.003" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-7/8” diameter x 6” long |  |
6.0" Nominal Outside Diameter (P/N: SAL-6.0-RF-OAL-OS) |
1/2" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 60": 0.003" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-7/8” diameter x 6” long |  |
8.0" Nominal Outside Diameter (P/N: SAL-8.0-RF-OAL-OS) |
1/2" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 12L14 steel. Journal diameters: 1.0" to 1-7/8" |  |
