Lightweight Aluminum Idler Rollers
Lightweight Aluminum Idler Rollers
Lightweight Aluminum Idler Rollers
Made from ¼" wall 6061-T6 aluminum tube, Double E Group lightweight aluminum idlers have less weight and less rolling inertia than standard aluminum idlers. Made for lower web tension applications, these rolls have less weight and less rolling inertia than standard aluminum idlers.
All other aspects of these rolls are the same as our standard aluminum idlers. Made with special low-drag ER style bearings for solid thru shafts, these idlers are dynamically balanced to ISO grade G6.3. Each roll is machined to precision tolerances and has a 32 RMS surface finish across the face. If a hard surface is required to prevent grooving, hard coat anodizing is a popular surface treatment we provide.
Advantages:
Specifications - Dead Shaft
"Dead shaft" idler rollers have a bearing in the idler roll body and therefore the dead shaft (axle) remains stationary. The shaft is fixed to the machine frame in various manners.
Lightweight Aluminum Dead Shaft Illustrations & Specifications
| ROLLER | SPECIFICATIONS | DRAWING | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
3.0" Nominal Outside Diameter (P/N: LW-3.0-1.0-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Special low drag ER style bearings for 1.0" diameter thru shaft |  |
||||||||
3.5" Nominal Outside Diameter (P/N: LW-3.5-1.0-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.0" diameter thru shaft |  |
||||||||
4.0" Nominal Outside Diameter (P/N: LW-4.0-SD-RF-OS) |
O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 48": 0.002" T.I.R. - Roll face to 84": 0.004" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.0", 1.25" or 1.5" diameter thru shaft |  |
||||||||

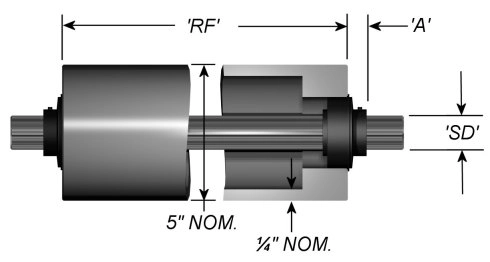

5.0" Nominal Outside Diameter (P/N: LW-5.0-SD-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.0", 1.25" or 1.5" diameter thru shaft |  |
||||||||
6.0" Nominal Outside Diameter (P/N: LW-6.0-1.5-RF-OS) |
6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Special low drag ER style bearings for 1.5" diameter thru shaft |  |
Specifications - Live Shaft
Live shaft rollers have a shaft (axle) that is fixed to the idler roll and therefore rotates with the roller body. The roller bearing is mounted to the machine frame, generally a pillow block or flange mounted bearing.
Lightweight Aluminum Live Shaft Illustrations & Specifications
| ROLLER | SPECIFICATIONS | DRAWING |
|---|---|---|

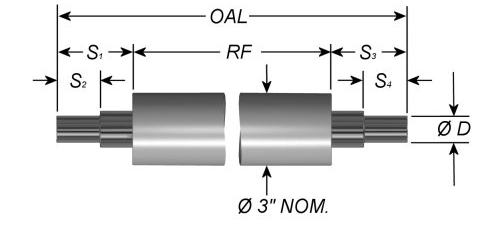

3.0" Nominal Outside Diameter (P/N: LWL-3.0-1.0-RF-OS) |
1/4" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1" diameter x 6" long |  |

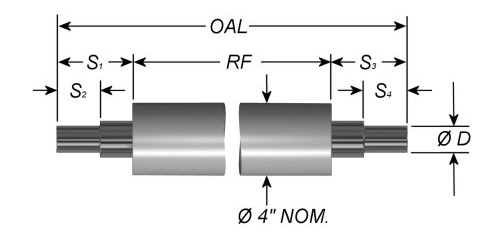

4.0" Nominal Outside Diameter (P/N: LWL-4.0-RF-OAL-OS) |
1/4" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-3/8” diameter x 6” long |  |

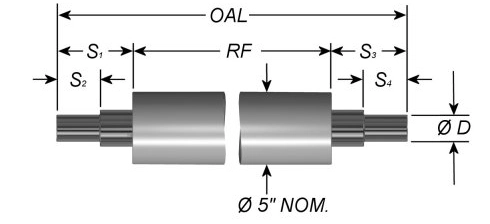

5.0" Nominal Outside Diameter (P/N: LWL-5.0-RF-OAL-OS) |
1/4" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: - Roll face to 60": 0.003" T.I.R. Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-7/8” diameter x 6” long |  |

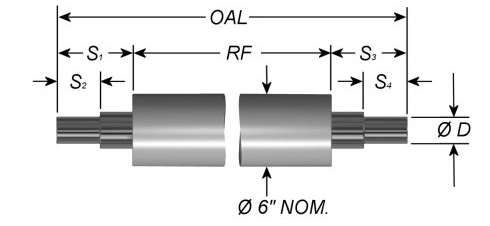

6.0" Nominal Outside Diameter (P/N: LWL-6.0-RF-OAL-OS) |
1/2" wall, 6061-T6 aluminum tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 3/4” diameter x 6” long |  |
