Steel Idler Rollers
Steel Idler Rollers
Steel Idler Rollers
Made from DOM steel tubing, Double E Group steel idlers have their special niche in the market due to their high strength and performance. Steel idlers are well suited for high to medium load applications. Steel idlers are also economical, especially in substantial loading situations. All steel idlers are dynamically balanced to ISO grade G6.3. Each roll is machined to precision tolerances and has a 32 RMS surface finish across the face.
Advantages
Specifications - Dead Shaft

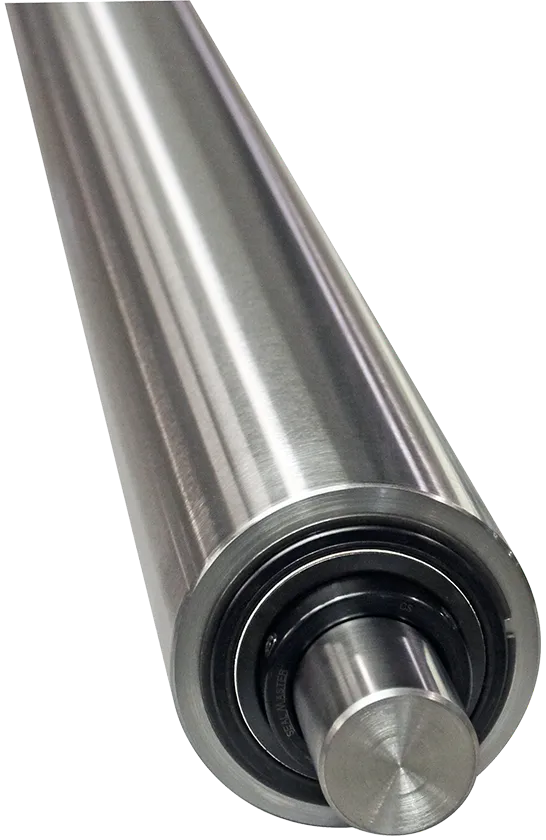

"Dead shaft" idler rollers have a bearing in the idler roll body and therefore the dead shaft (axle) remains stationary. The shaft is fixed to the machine frame in various manners.

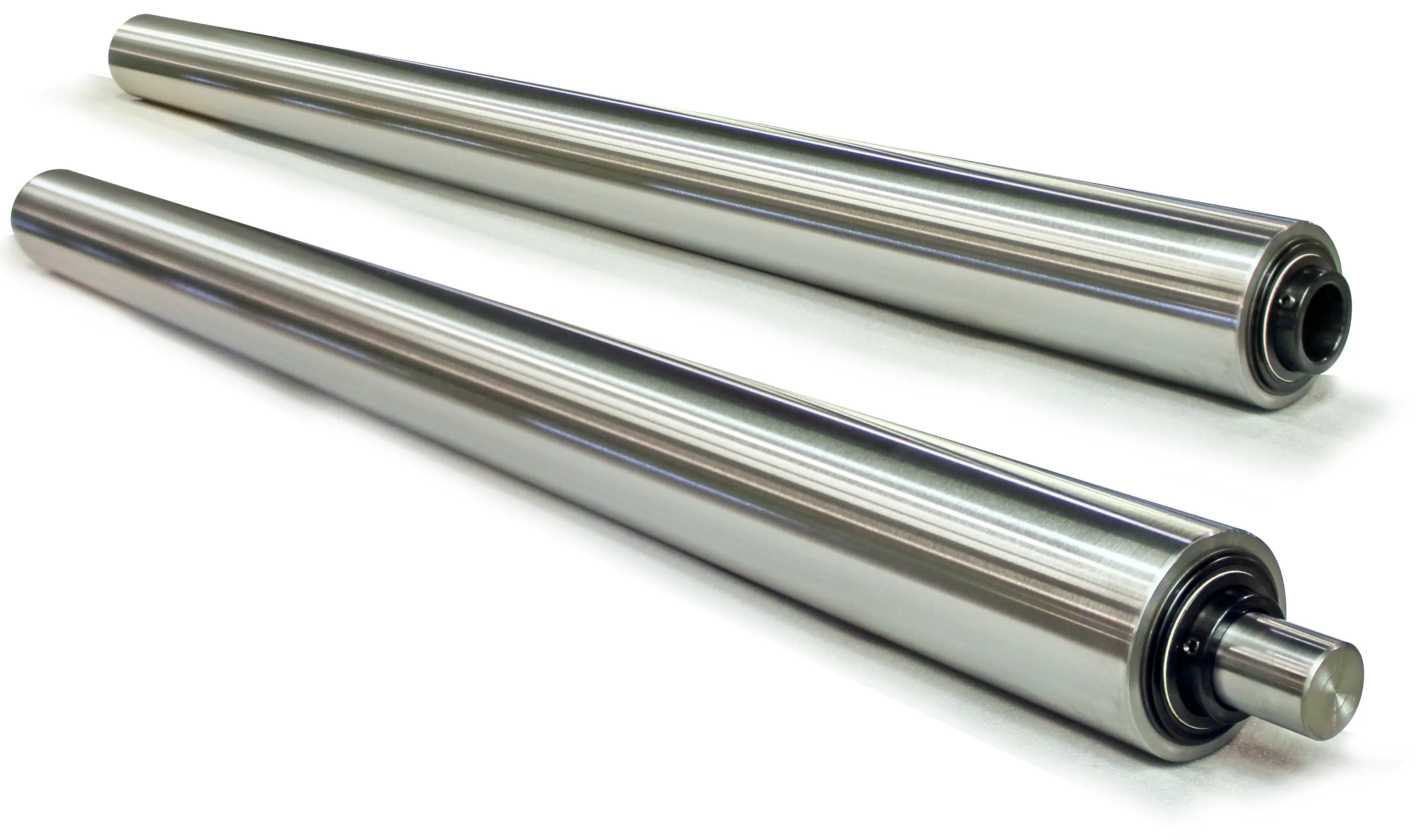

Steel Dead Shaft Illustrations & Specifications
| ROLLER | SPECIFICATIONS | DRAWING | ||||||
|---|---|---|---|---|---|---|---|---|

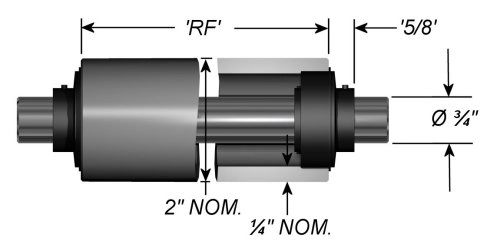

2.0" Nominal Outside Diameter (P/N: ST-2.0-0.75-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Special low drag ER style bearings for 3/4" diameter thru shaft |  |
||||||

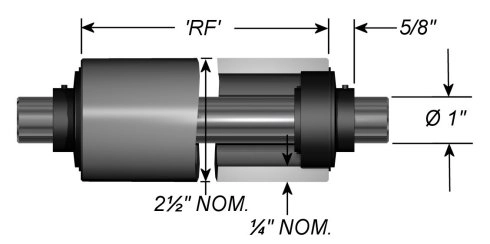

2.5" Nominal Outside Diameter (P/N: ST-2.5-1.0-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Special low drag ER style bearings for 1.0" diameter thru shaft |  |
||||||
3.0" Nominal Outside Diameter (P/N: ST-3.0-1.0-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.0" diameter thru shaft |  |
||||||
3.5" Nominal Outside Diameter (P/N: ST-3.5-1.25-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.25" diameter thru shaft |  |
||||||

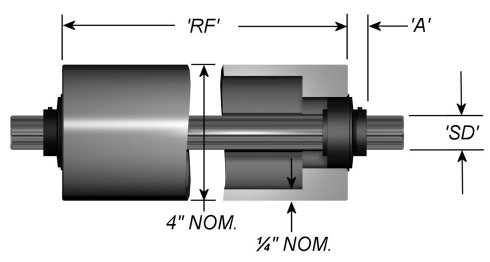

4.0" Nominal Outside Diameter (P/N: ST-4.0-SD-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Special low drag ER style bearings for 1.25" or 1.5" diameter thru shaft |  |
||||||
5.0" Nominal Outside Diameter (P/N: ST-5.0-2.0-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Special low drag ER style bearings for 2.0" diameter thru shaft |  |
||||||
6.0" Nominal Outside Diameter (P/N: ST-6.0-2.0-RF-OS) |
1026 DOM steel tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Special low drag ER style bearings for 2.0" diameter thru shaft |  |
Specifications - Live Shaft

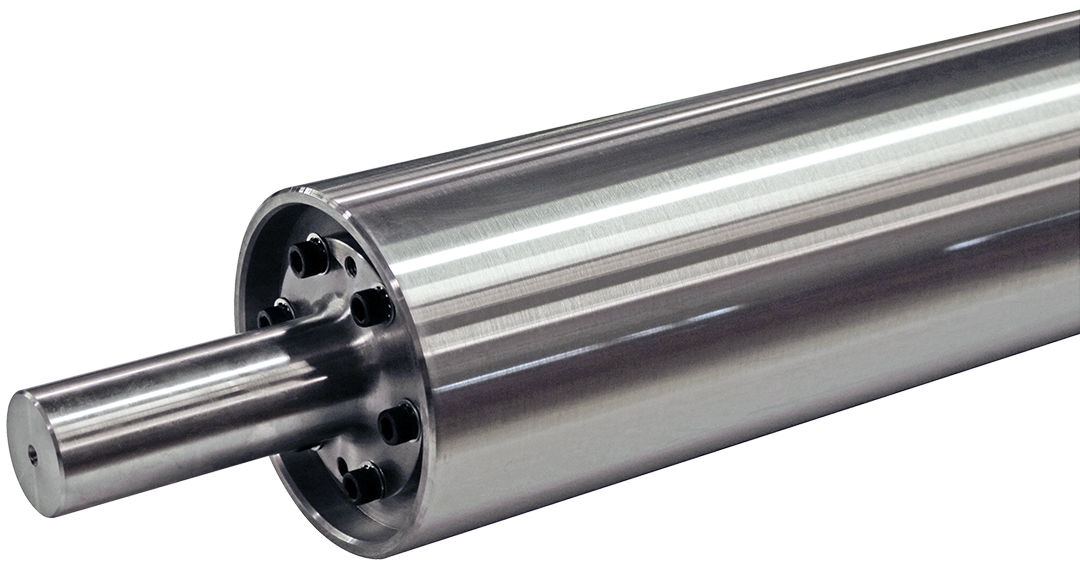

Live shaft rollers have a shaft (axle) that is fixed to the idler roll and therefore rotates with the roller body. The roller bearing is mounted to the machine frame, generally a pillow block or flange mounted bearing.
Steel Live Shaft Illustrations & Specifications
| ROLLER | SPECIFICATIONS | DRAWING |
|---|---|---|
3.0" Nominal Outside Diameter (P/N: STL-3.0-RF-OAL-OS) |
For single diameter shafts, S2 = 0 and S4 = 0 1/4" wall, 1026 DOM tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 750 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-3/8" diameter x 6" long |  |
4.0" Nominal Outside Diameter (P/N: STL-4.0-RF-OAL-OS) |
For single diameter shafts, S2 = 0 and S4 = 0 1/4" wall, 1026 DOM tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1000 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-3/8" diameter x 6" long |  |

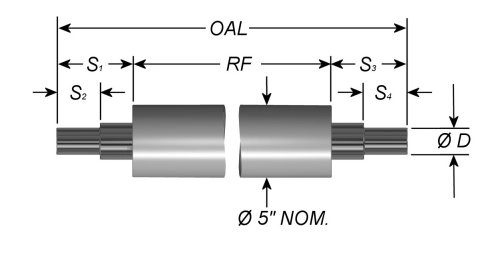

5.0" Nominal Outside Diameter (P/N: STL-5.0-RF-OAL-OS) |
For single diameter shafts, S2 = 0 and S4 = 0 1/4" wall, 1026 DOM tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-7/8" diameter x 6" long |  |
6.0" Nominal Outside Diameter (P/N: STL-6.0-RF-OAL-OS) |
For single diameter shafts, S2 = 0 and S4 = 0 3/8" wall, 1026 DOM tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-7/8" diameter x 6" long |  |

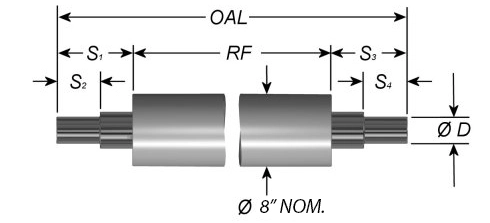

8.0" Nominal Outside Diameter (P/N: STL-8.0-RF-OAL-OS) |
For single diameter shafts, S2 = 0 and S4 = 0 3/8" wall, 1026 DOM tubing O.D. skim cut and polished O.D. to bore concentricity: Taper over face width not to exceed 0.0005"/ft. length (0.002" min.) Dynamically balanced to your line speed within ISO grade G6.3. Additional fee if over 1500 F.P.M. Journal material: 1018 steel Journal sizes: up to 1-7/8" diameter x 6" long |  |
