Summary

WrinkleSTOP® No-Bow Spreader Roller

The WrinkleSTOP® No-Bow Spreader Roller is designed to remove wrinkles without distortion, marking, or stretching of the web. Unlike bowed or grooved rollers, it uses a smooth, straight, expanding surface that delivers extraordinary performance in wrinkle elimination across a wide range of materials. WrinkleSTOP® is the ideal for converters in printing, laminating, films and foils, coating, and other related industries.

Works well on all types of material including:

  • Cloth
  • Paper
  • Foil
  • Film
  • Plastics
  • Nonwovens

Eliminate wrinkles without distortion, marking, or stretching. WrinkleSTOP® is a compact, bowless roller engineered for smooth, flawless web handling. It is the only smooth surface, linear, adjustable, expanding surface roll on the market. Traditional anti-wrinkle rollers can distort webs, require extra space, or demand downtime for adjustments. WrinkleSTOP® eliminates those challenges with its real-time adjustability while the line is running.


Product Information

WrinkleSTOP® No-Bow Spreader Roller

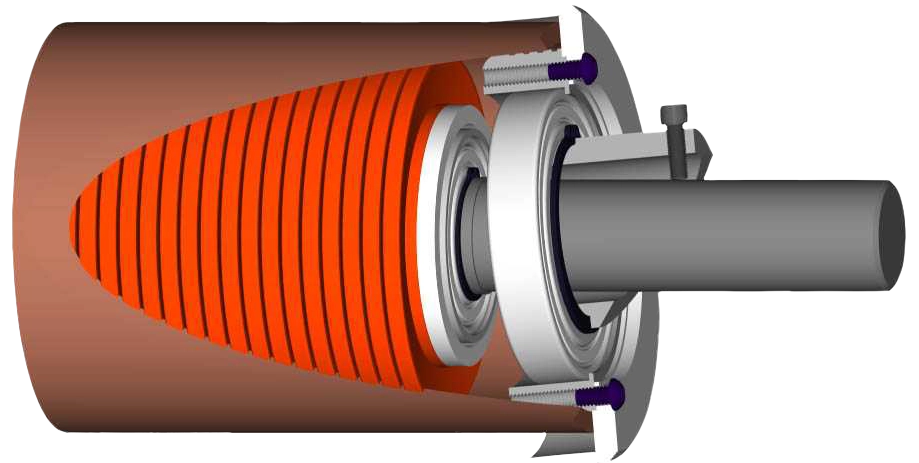

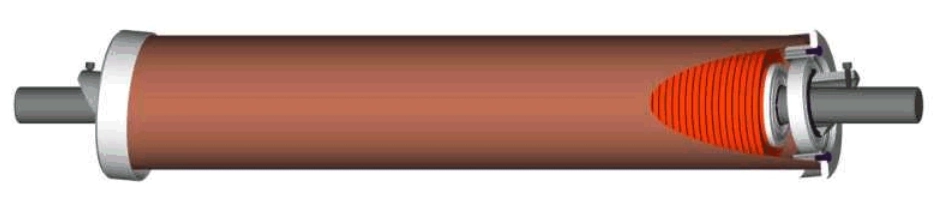

Inside of the WrinkleSTOP® Spreader Roller


  • Bowless, smooth roll produces zero-web distortion – WrinkleSTOP® will not mark, stretch, introduce wrinkles into the web, or send non-level web into other level sensitive devices such as moisture or weight meters. This prevents stressed or torn web center areas and altered centerline travel

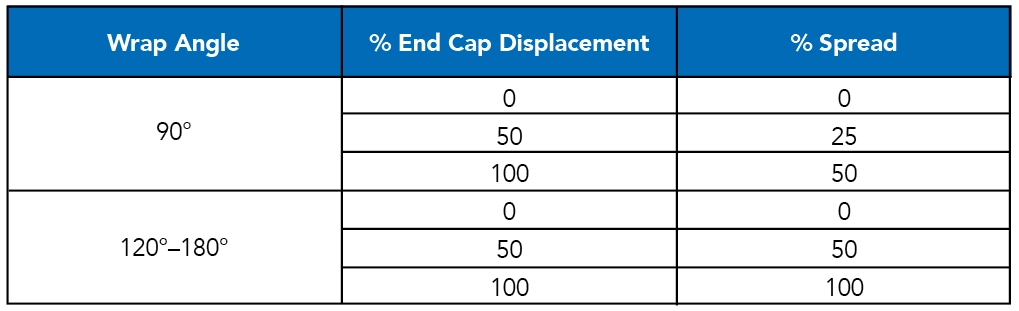

  • Independent edge-to-edge adjustability while the web is in motion – Quickly alter the degree of expansion at each end cap. This allows for distortion to be corrected at earlier points in the line and gives total control of spreading action to meet the requirements of the specific application.
  • No special tools needed to adjust degree of spreading action - Provides productive, cost-effective performance
  • Directly replaces existing anti-wrinkle rollers or idlers with easy installation
  • Accepts and delivers web at any angle: WrinkleSTOP® works will with extremely short lead-in and lead-out web distances without sacrificing productivity. Saves space in your plant line, improves web runs, and allows replacement of existing limited-angle roll arrangements with fewer rolls.
  • Designed for high traction - Stretchable rubber sleeve maintains high traction without surface glazing
  • Reliable performance in a variety of conditions - Vacuum chambers, High-heat applications, corrosive atmospheres, food and pharmaceutical operations




Applications
  • Installations requiring a high wrap angle
  • Production lines with space constraints
  • Processing of delicate web materials – foils, films, etc.
  • Ideal for converters in:
    • Films & Foils
    • Printing
    • Laminating
    • Coating
    • Nonwovens

Options

  • Available in 3 diameters: 3.375”, 5.5”, & 8
  • Foot or flange mounting
  • Cantilevered WrinkleSTOP® rollers available
  • Drilled and tapped ends
  • Range of cover materials: Neoprene (STD), Nitrile, EPDM, Urethane, etc. (All covers are 50 Durometer hardness)
  • Drive sheave option
  • Adaptable for corrosive atmospheres and food/pharmaceutical environments
  • Static conductive roll face available

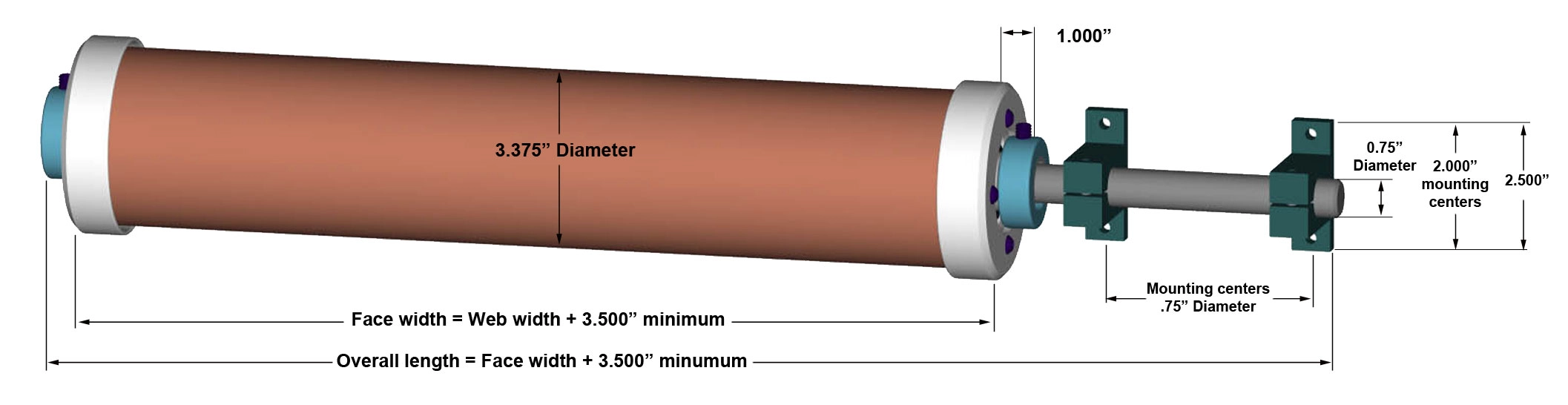

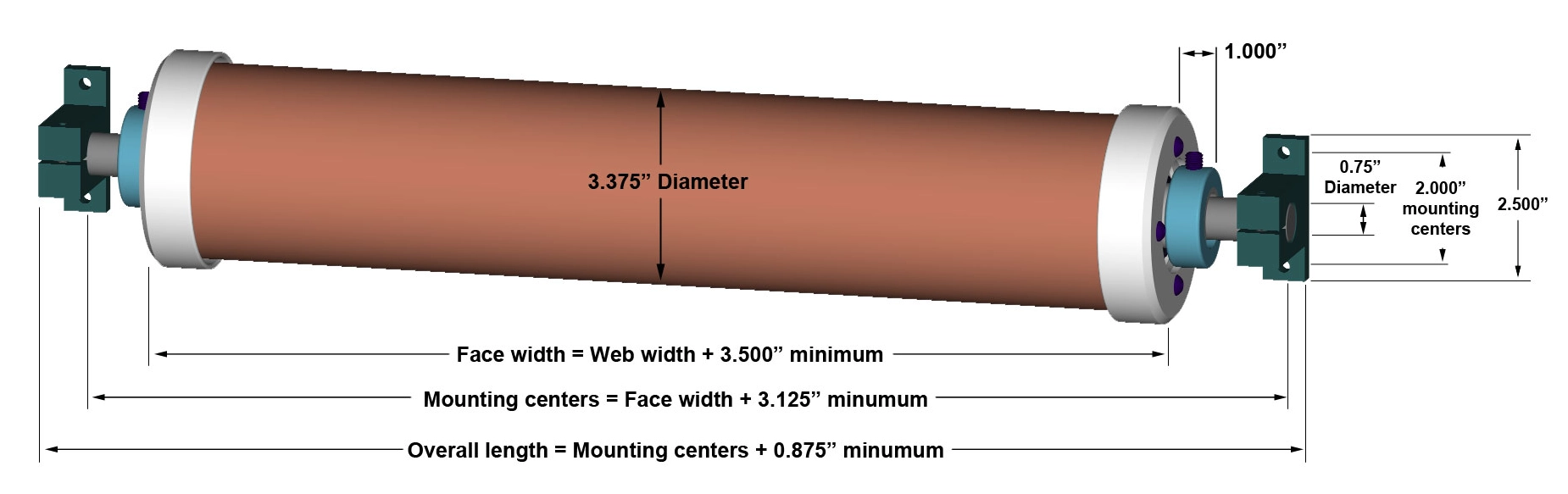

3.375" Diameter WrinkleSTOP®



Options
  • Flange type mounting brackets
  • Drilled and tapped ends
  • Drive Sheave
    • 4.875" Outside diameter
    • 4.575" Pitch diameter - B Belt
    • 4.275" Pitch diameter - A Belt
  • Various sleeve materials

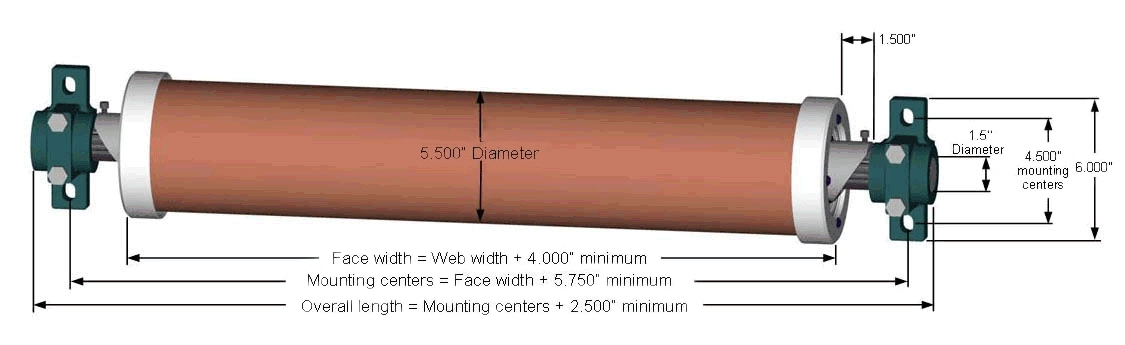

5.5" Diameter WrinkleSTOP®


Options
  • Flange type mounting brackets
  • Drilled and tapped ends
  • Drive Sheave
    • 6.000" Outside diameter
    • 5.600" Pitch diameter - B Belt
    • 5.200" Pitch diameter - A Belt
  • Various sleeve materials

8" Diameter WrinkleSTOP®


Options
  • Flange type mounting brackets
  • Optional drive sheave
  • Various sleeve materials
